cyclogramSee your machine's cycle.
Then make it faster.

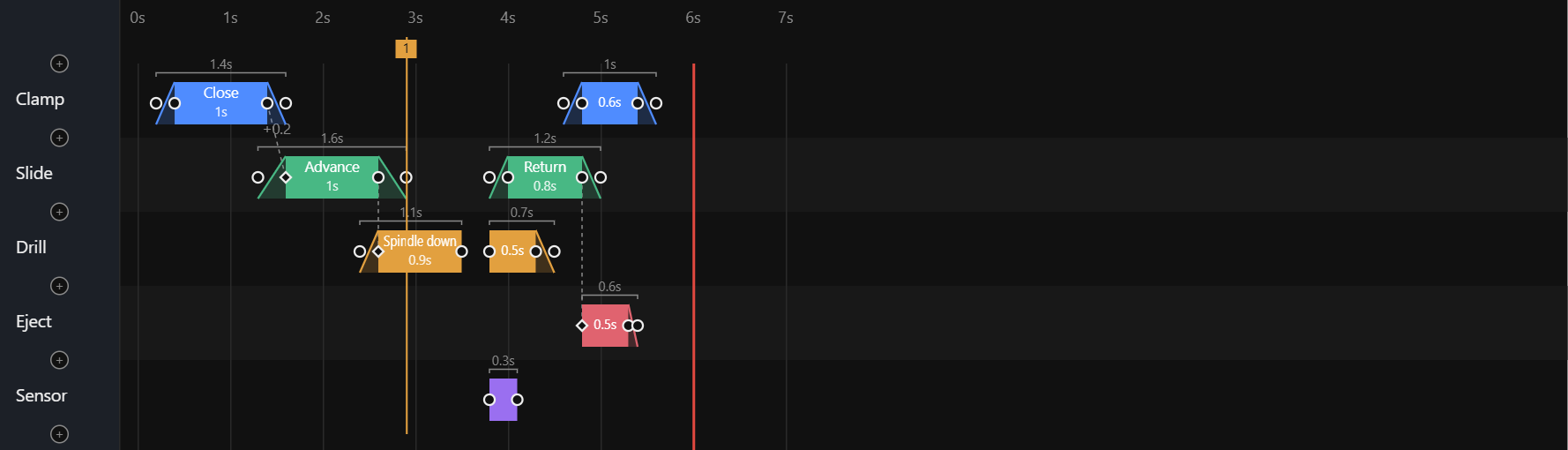

Cyclogram is a cycle-diagram editor for machine design engineers. Model every actuator's movements with ramps, bind them into chains, wrap the timeline at your target cycle time — and see exactly which movement decides how fast your machine runs.
Open Cyclogram — free to view ➜
No account·Works fully offline·Your data never leaves your computer
Built for one repeating cycle
Not a generic Gantt chart — every feature exists because machine cycles need it.
Movements with rampsEvery task is ramp-up, body, ramp-down — drawn as the trapezoid your pneumatics and servos actually follow.
Bindings with offsetsChain movements together: “start 0.2 s after the clamp closes”. Move one, the whole chain follows.
Wrap at the cycle timeFold the timeline at the target: a movement crossing the boundary continues at the loop start, exactly like the running machine.
Critical pathOne click shows the chain of movements your cycle time hangs on. Shorten those; ignore the rest.
Marks & rulerNumbered time marks to snap and bind to — even off the grid — and a ruler that reads exact times under your mouse.
Reusable librarySave actions, groups and whole actuators with tags and folders. Drag them into any project as independent copies.
Compare viewOpen a second project below the first on a shared time axis and see the differences line up.
PDF & Excel exportsPrint-ready timeline PDFs, and Excel sheets with one cell per resolution unit — bindings and marks included.
Installs & works offlineInstall it like a program from your browser. After the first visit it runs with no internet — projects live on your machine, not on a server.
Simple licensing, checked offline
A license is a small file — no account, no license server, no phoning home. Import it once and the app is yours, even with no internet.
VIEWER
Free
for colleagues & reviewers
- Open and view every project file
- Full timeline, bindings, wrap view
- Editing
- Exports · shows a watermark
TRIAL
Free trial
try everything, sized for one station
- Full editing — every feature
- Up to 2 actuators and 6 tasks
- PDF & Excel exports (watermarked)
- Your chosen duration, e.g. 3 months
FULL
Full license
for daily machine design
- Unlimited actuators and tasks
- Clean exports, no watermark
- Works offline forever
- Renewals are just a new file
